多路高压电源
Multi-channel high-voltage power supply

MUS系列

MUS系列高压电源为一款高精度、高稳定性多通道输出的高压电源,可安装于19〞机架式外壳内。各通道独立控制、独立启停、独立显示电压电流,各通道输出电压具有正极性或负极性输出多种规格,输出电压从0.1KV至30KV可选,最大输出功率30W。输出电压和电流值经面板上数字表头进行显示,操作简单方便。用户可通过本控电位器旋钮对输出电压进行连续线性调节。电源具有过压、过流、拉弧、短路等保护功能。电源采用金属外壳,有良好的电屏蔽效果


产品特点

▶高稳定性、高精度;

▶独立显示、独立控制;

▶可安装于19〞机架;

▶输出电压连续线性可调;

▶本控电位器调节;

▶过压、过流、拉弧、短路等保护功能;

▶具有启动、停止功能;

▶低EMI、抗干扰能力强;




电源轴侧图

典型应用

静电分离、静电喷涂、毛细管电泳、静电植绒、静电除尘、老炼设备、耐压测试、静电纺丝、高压偏置、高压去毛刺、高压点火、材料分选、金属气化、电爆、空气净化、水净化、电子束、医用消毒、通讯交通、科学研究、国防军工等。

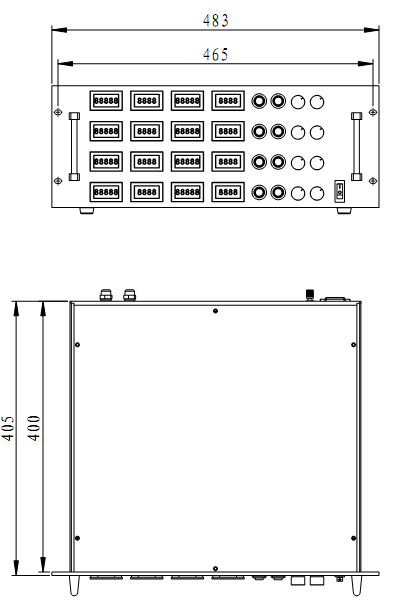

外形结构及尺寸


规格说明


技术参数 规格指标
输入电压(典型) AC220V±10%,50Hz~60Hz
输出电压 详见“典型产品列表”,可根据用户需求进行特殊定制。
输出电流
输出功率 单通道输出≤30W
纹波电压 ≤0.05%
电压调整率 负载一定,输入电压最大允许范围内,小于0.1%
负载调整率 输入电压一定,负载从空载至额定,小于0.5%
时漂 ≤0.1%/h (电源工作30分钟后)
温漂 ≤0.1%/℃
本控 调节多圈电位器,可将输出电压设置在0V到最大电压之间。
启停功能 控制电源的启动和停止,开关“按下”时,电源为启动状态
接地方式 交流隔离,参考地接大地
保护方式 限流型
工作温度范围 0℃~+50℃
储存温度范围 -25℃~+75℃
电源重量 -
外壳材质
外形尺寸 见“外形结构及尺寸”

典型产品列表
单通道输出电压 额定输出电流 纹波噪声 电压调整率 负载调整率
100V 10mA ≤0.05% ≤0.1% ≤0.5%
50mA ≤0.05% ≤0.1% ≤0.5%
100mA ≤0.05% ≤0.1% ≤0.5%
300mA ≤0.05% ≤0.1% ≤0.5%
500V 1mA ≤0.05% ≤0.1% ≤0.5%
10mA ≤0.05% ≤0.1% ≤0.5%
20mA ≤0.05% ≤0.1% ≤0.5%
60mA ≤0.05% ≤0.1% ≤0.5%
1000V 1mA ≤0.05% ≤0.1% ≤0.5%
5mA ≤0.05% ≤0.1% ≤0.5%
10mA ≤0.05% ≤0.1% ≤0.5%
30mA ≤0.05% ≤0.1% ≤0.5%
2000V 0.5mA ≤0.05% ≤0.1% ≤0.5%
2.5mA ≤0.05% ≤0.1% ≤0.5%
5mA ≤0.05% ≤0.1% ≤0.5%
15mA ≤0.05% ≤0.1% ≤0.5%
3000V 0.3mA ≤0.05% ≤0.1% ≤0.5%
1.5mA ≤0.05% ≤0.1% ≤0.5%
3mA ≤0.05% ≤0.1% ≤0.5%
10mA ≤0.05% ≤0.1% ≤0.5%
5000V 0.2mA ≤0.05% ≤0.1% ≤0.5%
1mA ≤0.05% ≤0.1% ≤0.5%
2mA ≤0.05% ≤0.1% ≤0.5%
6mA ≤0.05% ≤0.1% ≤0.5%
10KV 0.1mA ≤0.05% ≤0.1% ≤0.5%
0.5mA ≤0.05% ≤0.1% ≤0.5%
1mA ≤0.05% ≤0.1% ≤0.5%
3mA ≤0.05% ≤0.1% ≤0.5%
20KV 0.1mA ≤0.05% ≤0.1% ≤0.5%
0.25mA ≤0.05% ≤0.1% ≤0.5%
0.5mA ≤0.05% ≤0.1% ≤0.5%
1.5mA ≤0.05% ≤0.1% ≤0.5%
30KV 0.1mA ≤0.05% ≤0.1% ≤0.5%
0.3mA ≤0.05% ≤0.1% ≤0.5%
0.5mA ≤0.05% ≤0.1% ≤0.5%
1mA ≤0.05% ≤0.1% ≤0.5%

产品图片
